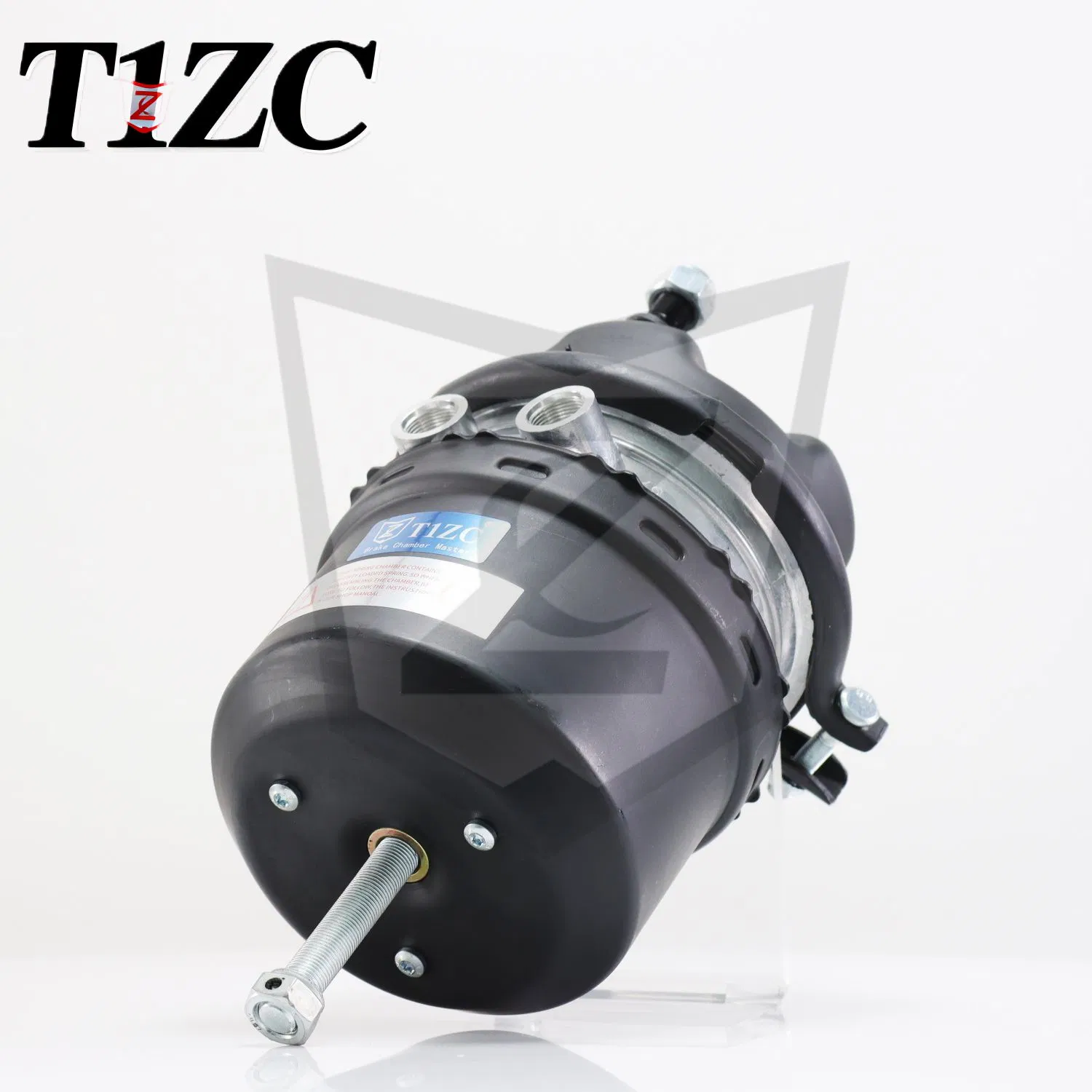

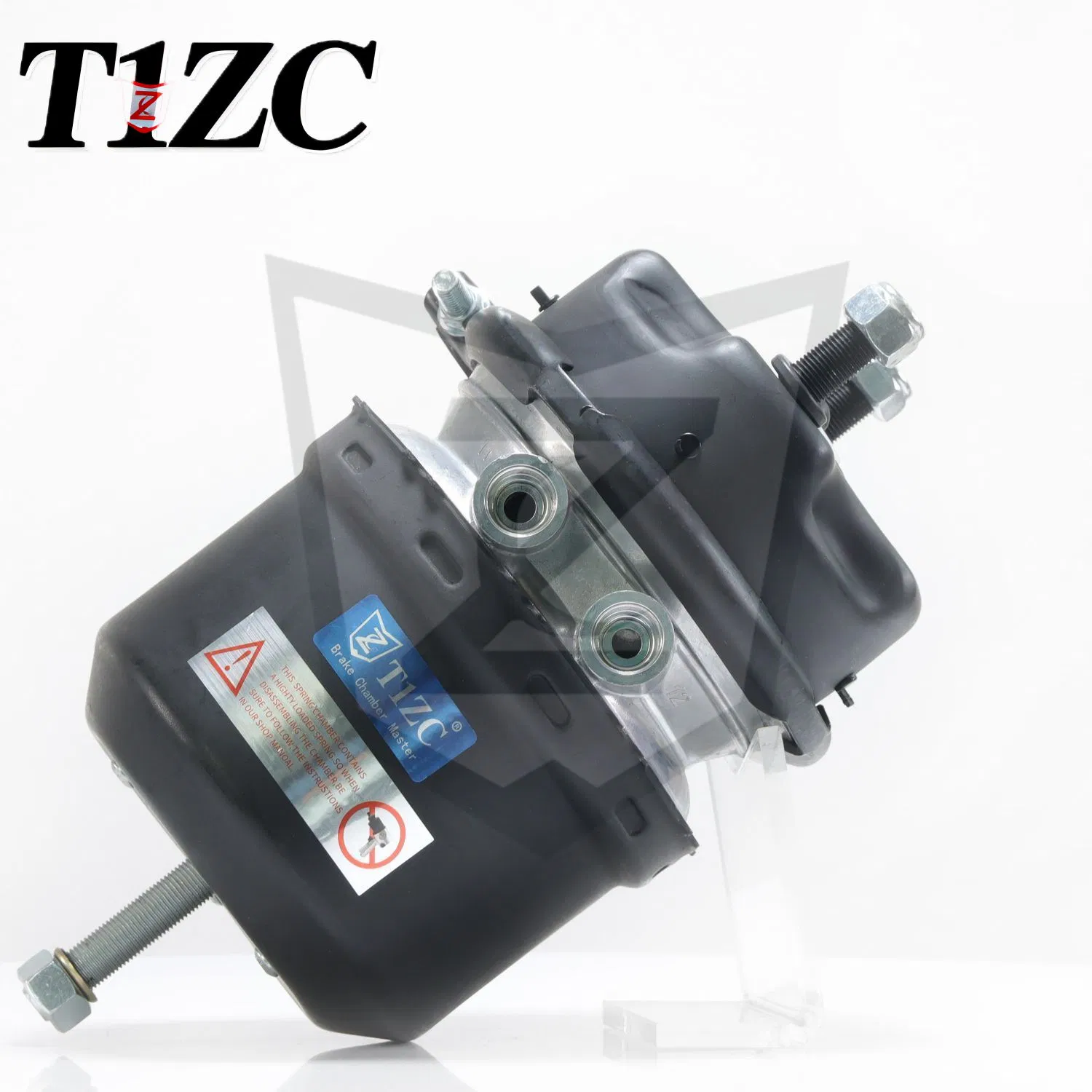

T1zc Brake System T24/24 DCP Cross Cover Air Spring Heavy Duty Truck Parts Brake Chamber Actuator

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.

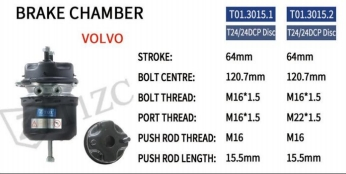

Model NO.:T24/24
Type:Brake System
Material:Steel
Position:Chassis
Certification:ISO9001
Classification:Chamber
Drum Brakes:Brake Chamber
Main Market:North America, Southeast Asia
Stroke:64mm
Bolt Center:120.7mm
Bolt Thread:M16*1.5
Port Thread:M16*1.5
Push Rod Thread:M16
Push Rod Length:15.5mm
OEM:Acceptable
HS Code:8708309500
📍 Product Description
The braking chamber is a crucial component in the braking system of a vehicle, responsible for converting the driver's braking input into the necessary force to slow or stop the vehicle. It typically houses the brake master cylinder, which generates the hydraulic pressure that actuates the brakes at each wheel. This chamber is designed to be sturdy and durable, withstanding the high pressures and temperatures generated during braking. Regular maintenance and inspection of the braking chamber are essential to ensure the continued reliability and effectiveness of the braking system.
⚙ Product Parameters
Diaphragms -- General
Part NoTypeAlternative 1Alternative 2Alternative 3A(mm)B(mm)C(mm)
TYE9.AT98971204954272489KY1505/11287931
TYE9.B9L8017209B.74478---1287130
TYE12/1612/16L8971219234------1627943
TYE12S12 SSKY1505/28017112A.75056.31391928
TYE24T 2489712053548017241B.6432217911539
TYE30T 3089712054048017130A.75056.720013933
Brake Chamber Actuator
Brake System Parts
Component Overview
CategoryDetailsImage Reference

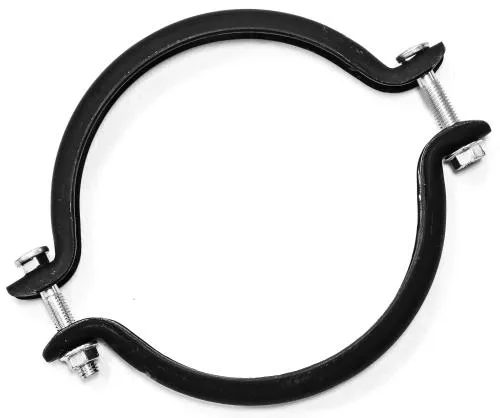

Clamp Ring SetsTypes: 16, 20, 24, 30Clamp Rings
Rubber GaitersDisc Brake, Cam Brake
Push RodsCam Brake (16mm), Disc Brake
Return SpringUniversal, Tower, Drum

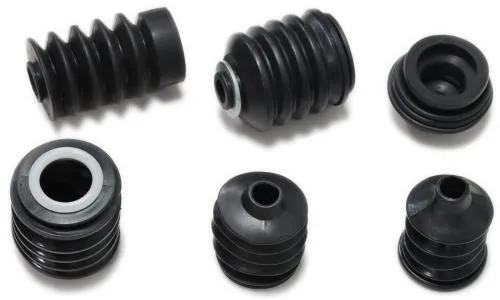

Rubber Gaiters

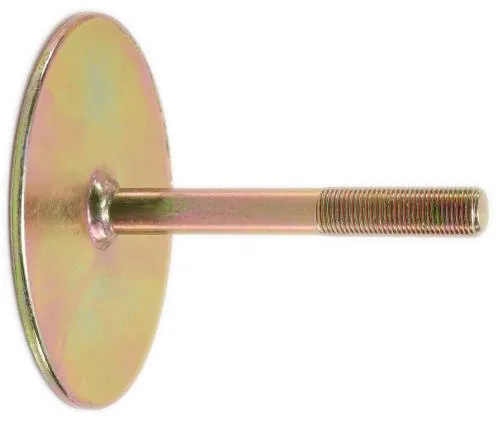

Push Rods

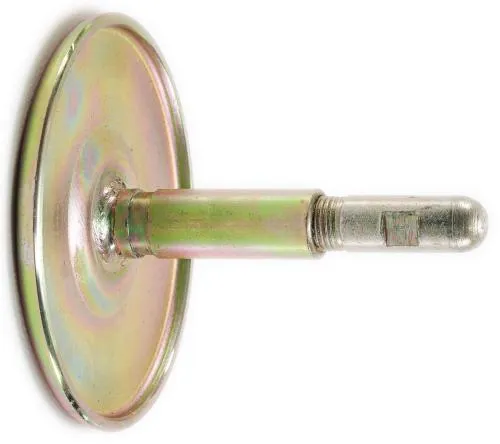

Disc Brake Rods
Adaptors & Yokes

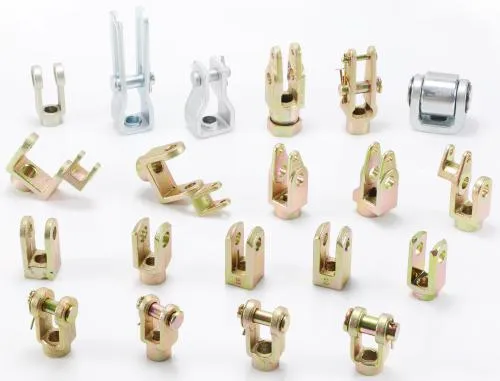

Yoke AssembliesVarious Threads (16mm, 5/8 UNF) and PinsYokes

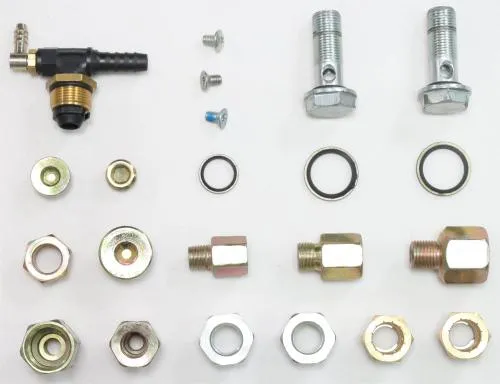

AdaptorsMale/Female M16, M22, VOSS, BSPAdaptors
📦 Packaging & Shipping
Packaging
Shipping
🛠 After Sales Service
After Sales 1
After Sales 2
Frequently Asked Questions
What is the primary function of the T24/24 brake chamber?
The T24/24 brake chamber converts air pressure into mechanical force, actuating the vehicle's braking system to slow down or stop the vehicle safely.
What materials are used in the construction of this brake chamber?
The chamber is primarily constructed from high-grade steel to ensure durability and resistance to high pressures and temperatures.
Does the product carry any quality certifications?
Yes, the production process is certified under ISO9001 standards, ensuring consistent quality and reliability.
Is it possible to order customized OEM parts?
Yes, OEM services are acceptable. We can provide customized solutions based on specific technical requirements.
What are the standard thread sizes for bolts and ports?
The standard bolt thread and port thread for the T24/24 model are both M16*1.5.
What is the daily production capacity for this item?
Our current production capacity allows for approximately 1300 pieces per day to meet large-scale demand.
