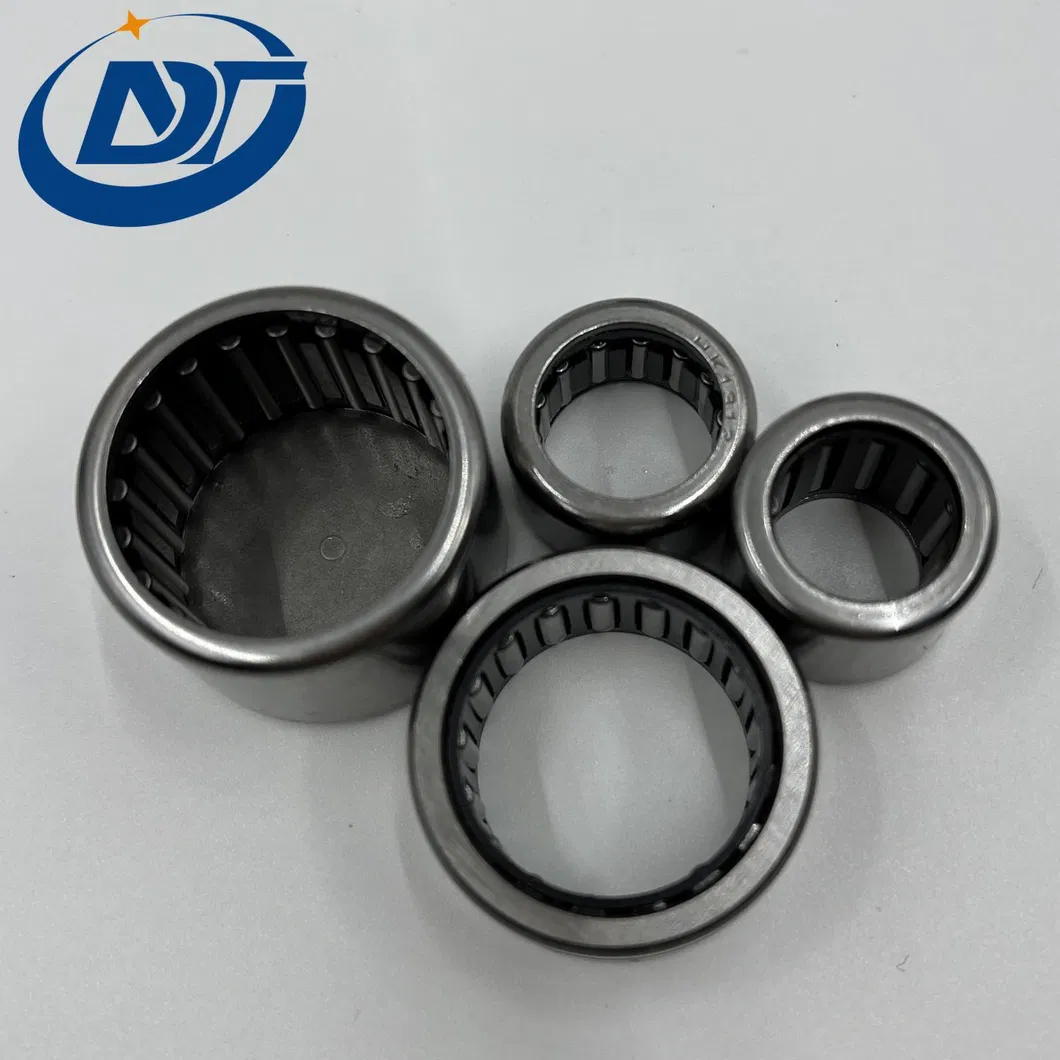

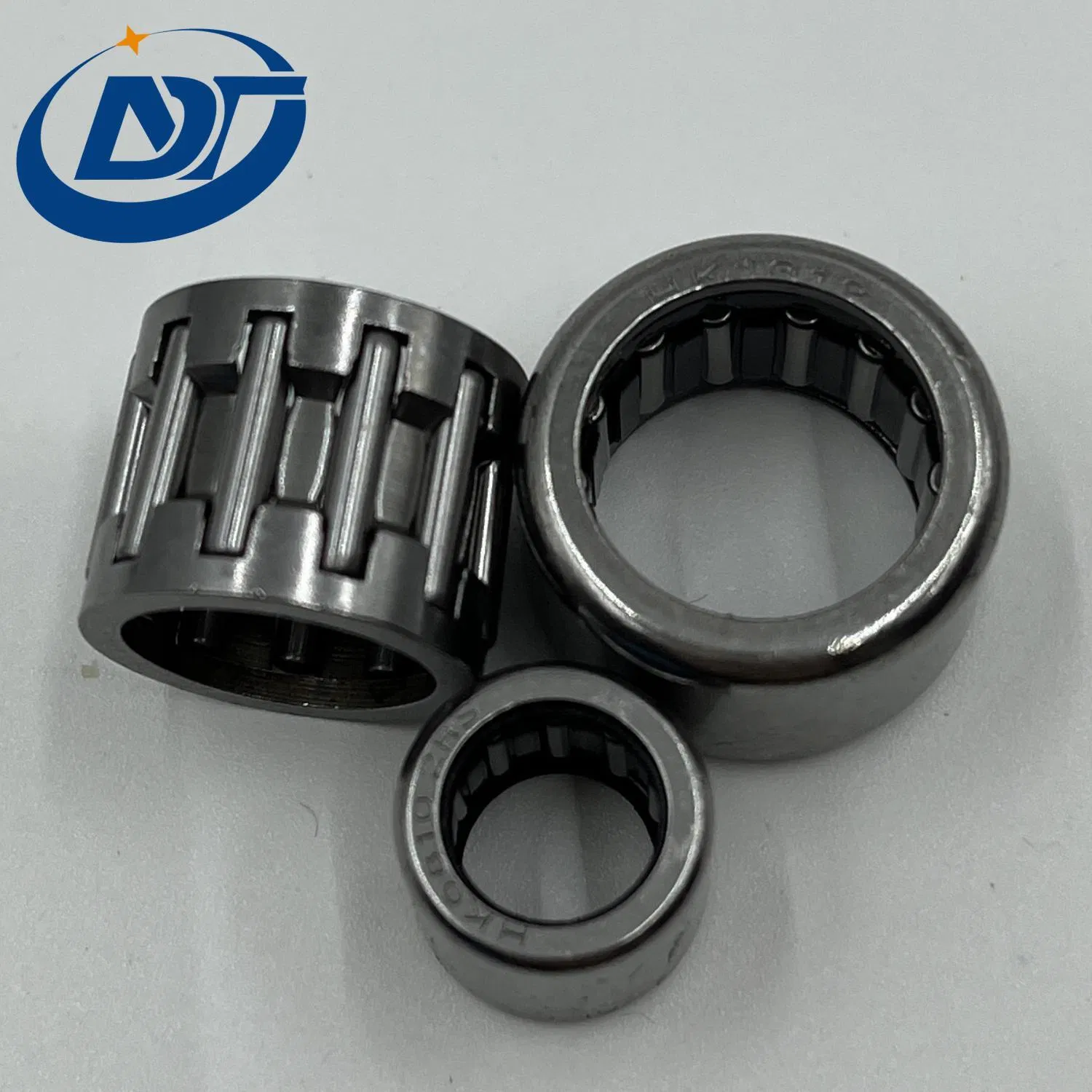

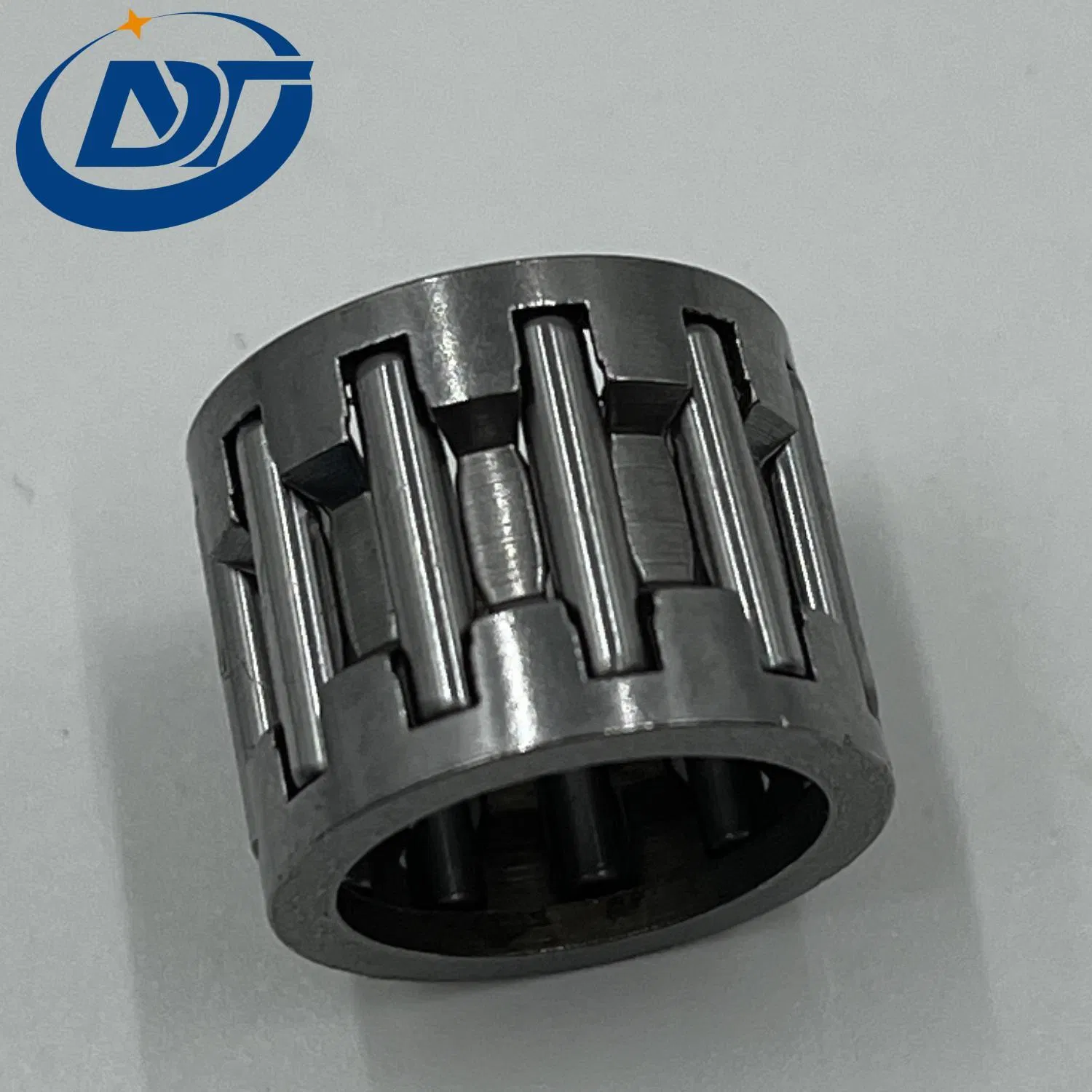

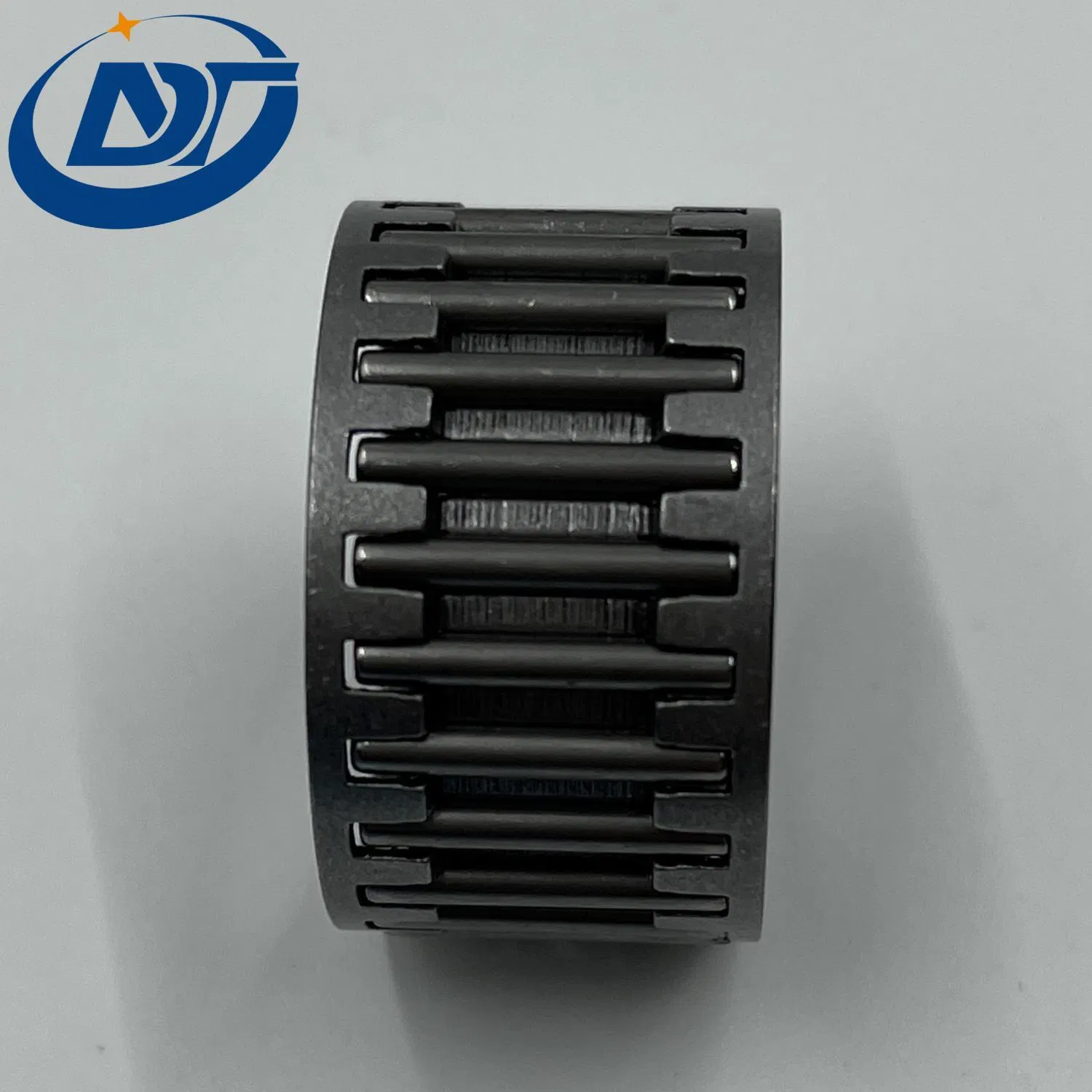

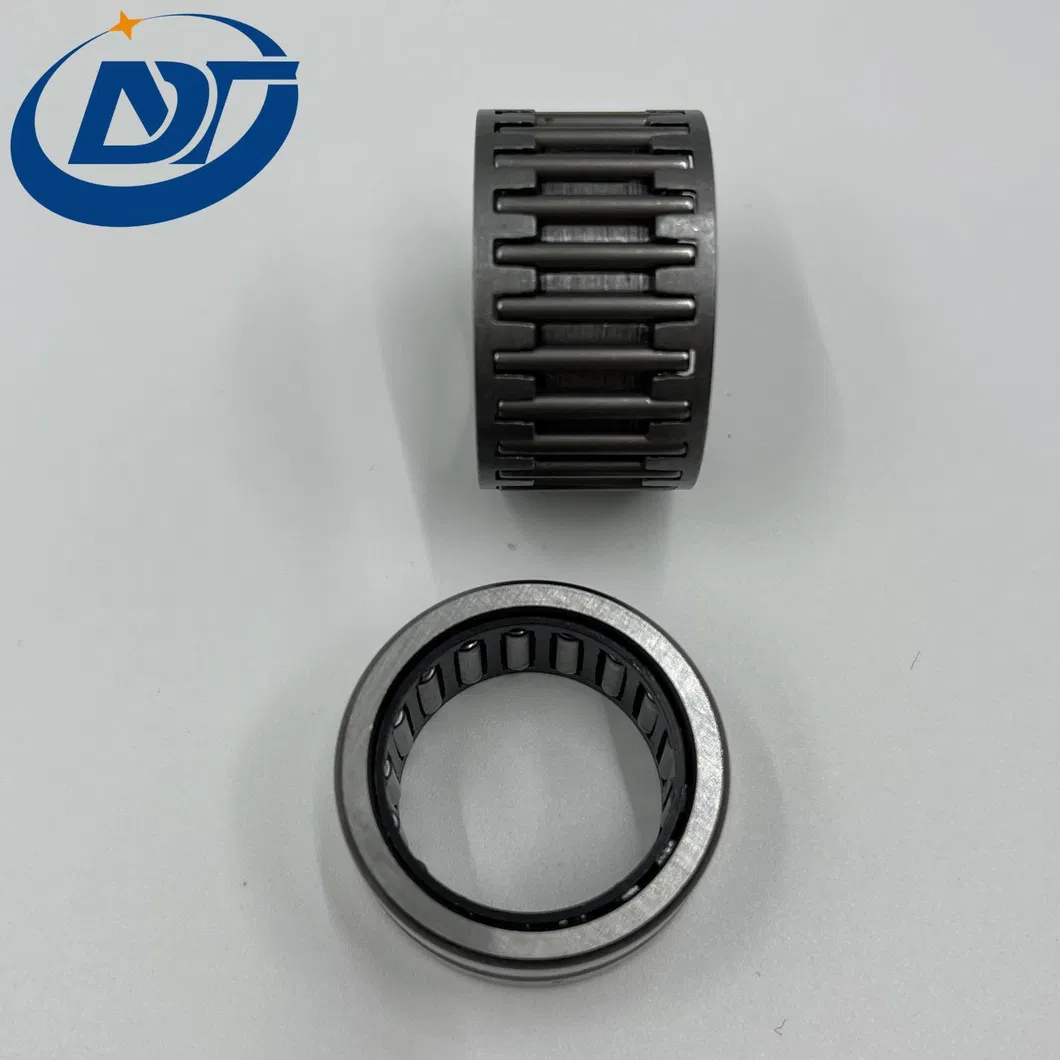

Needle roller bearings are roller bearings with cylindrical rollers. The rollers are thin and long relative to their diameter. This type of roller is called a needle roller. Despite having a smaller cross-section, the bearing still has a higher load bearing capacity. The radial structure is compact. When the inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest. It is especially suitable for the support structure with limited radial installation size.
| Product Name | Needle Roller Bearing |
|---|---|
| Bearing Material | Bearing Steel |
| Precision Grade | P0 P6 P5 P4 P2 |
| Bearing Size | Standard, Non-Standard, Customized |
| Clearance | C0 C2 C3 C4 C5 |
| Shipping Method | By air or by sea |
Needle roller bearings are equipped with thin and long rollers. Therefore, the radial structure is compact. When the inner diameter and load capacity are the same as other types of bearings, the outer diameter is the smallest. It is especially suitable for the support structure with limited radial installation size.
The needle bearings have a small cross-sectional height, which helps to ensure that the machine is both light and compact. Therefore, they have a wide range of applications, including automobiles, motorcycles, motors, machine tools, aerospace equipment, office equipment and other industrial machinery.
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Speed | ||||
|---|---|---|---|---|---|---|---|
| HK | BK | Fw | D | C | Cr | Cor | Oil(RPM) |
| HK0306TN | BK0306TN | 3 | 6.5 | 6 | 1320 | 950 | 60000 |
| HK0408TN | BK0408TN | 4 | 8 | 8 | 1540 | 1070 | 40000 |
| HK0509 | BK0509 | 5 | 9 | 9 | 2200 | 1790 | 36000 |
| HK0608 | - | 6 | 10 | 8 | 1830 | 1550 | 32000 |
| HK08*14*12 | - | 8 | 14 | 12 | 4100 | 4320 | 25000 |
| HK1010 | BK1010 | 10 | 14 | 10 | 3900 | 4800 | 19000 |
| HK2016 | BK2016 | 20 | 26 | 16 | 11700 | 29100 | 10000 |
Materials with good quality are selected and tested layer by layer.
Enthusiastic and timely online service and reliable support.
Expert teams focused on technology, research, and production.
Providing better products with cost-effective pricing solutions.

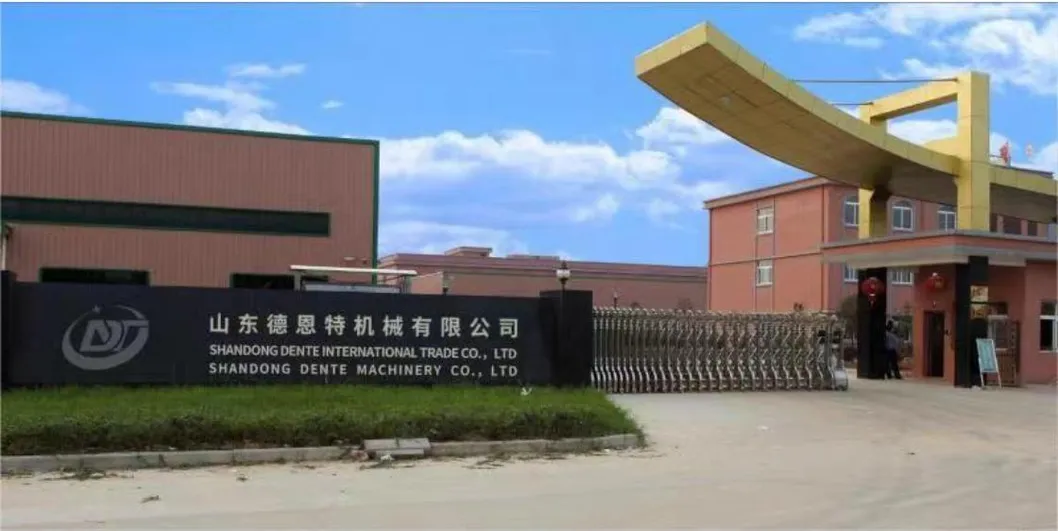

We are a comprehensive enterprise focusing on import and export business based on a bearing factory located in one of the largest bearing wholesale bases. We have been in this line for more than 20 years. In addition to our own factory, we cooperate with more than 500 bearing factories to meet diverse market requirements. We supply high-quality products with competitive prices and short delivery times.

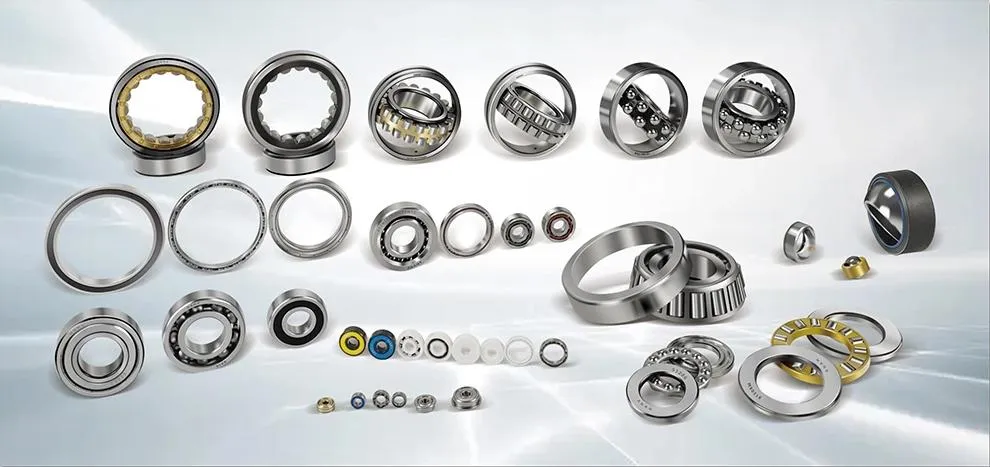

Our product range includes deep groove ball bearings, tapered roller bearings, pillow block bearings, needle roller bearings, wheel hub bearings, and customized solutions for various industrial applications.
